Mitsubishi

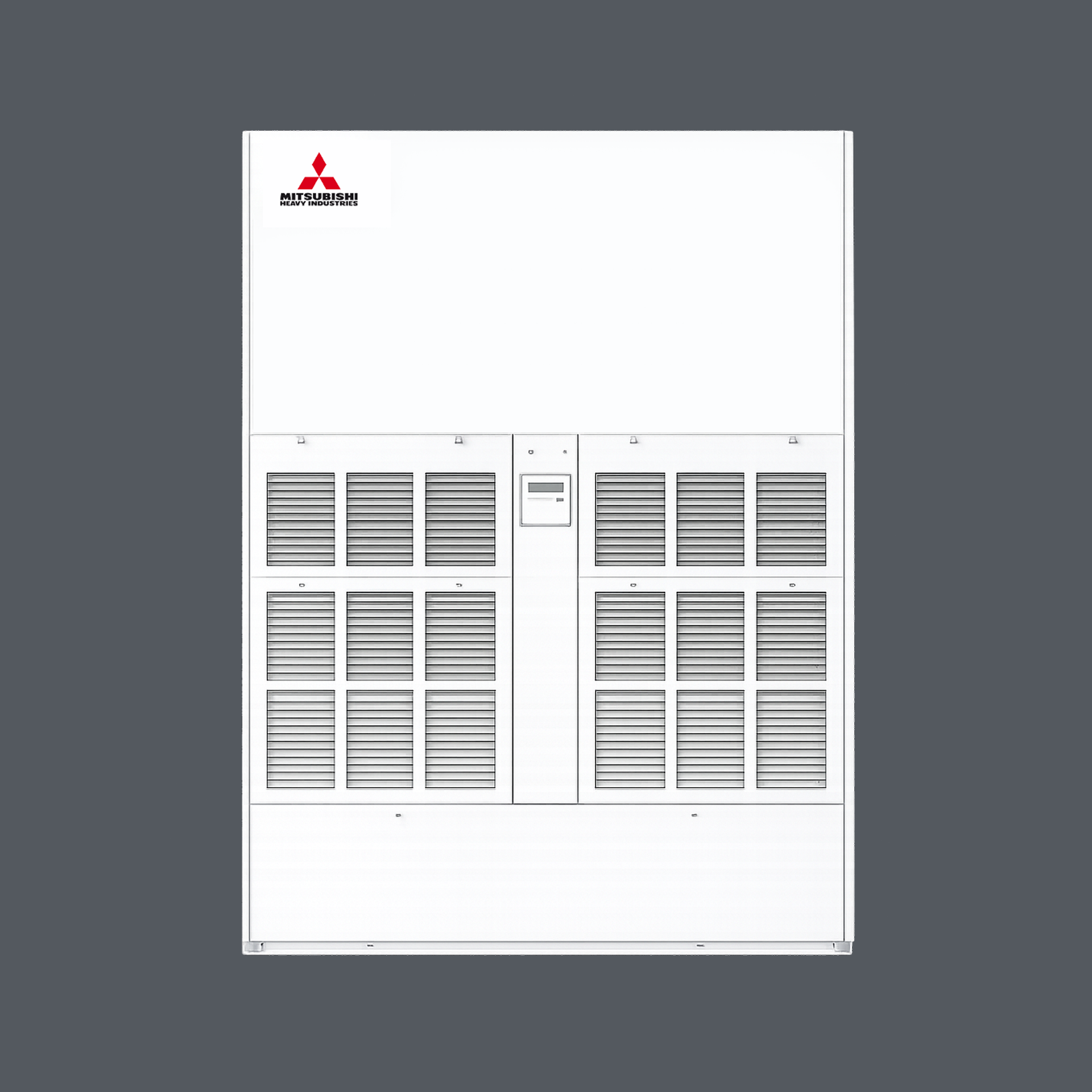

FDAS500CSY-S – 20PK

Categories: ,

Deliver consistent, whole-room comfort with this sleek floor-standing air conditioning unit — engineered for spaces that demand both performance and style. Its tall, slim cabinet design blends seamlessly into modern interiors while providing the airflow capacity needed to cool large, high-traffic areas efficiently.

  • Automatic Horizontal Swing Direction – The automatic horizontal swing direction enhances wide and powerful airflow distribution. It improves comfort while achieving high efficiency in combination with a highly advanced outdoor unit.
  • Easy Transport and Installation – The heat exchanger surface is easily accessed by opening the front panel, making cleaning easy as well.

Perfect For:

  • 🏢 Offices — Maintain a cool, productive workspace for employees and clients alike.
  • Cafés & Coffee Shops — Keep guests comfortable during peak hours without sacrificing interior design appeal.
  • 🍽️ Restaurants — Handle the heat from kitchens and crowded dining areas with reliable, high-volume cooling.
  • 🏬 Retail Stores & Showrooms — Create a pleasant shopping environment that encourages customers to stay longer.
  • 🏨 Lobbies, Clinics & Function Halls — Any mid-to-large-sized commercial space benefits from this unit’s strong, even cooling performance.

Additional information

Capacity

50 kW

Power Consumption

19 kW

EER

2.63 W/W

Inrush Current/Max. Current

43 A

Indoor Power Supply

3 Phase/380-415V/50Hz

Indoor Airflow rate (Hi/Me/Lo)

160 m³/min

Indoor Sound pressure level (Hi/Me/Lo)

64 dB(A)

Indoor Exterior dimensions (H x W x D)

2020 x 1500 x 800 (mm)

Indoor Net weight

362 kg

Outdoor Power Supply

3 Phase/380-415V/50Hz

Ourdoor Airflow rate

200 x 2 m³/min

Outdoor Sound pressure level

60 x 2 dB(A)

Outdoor Exterior dimensions (H x W x D)

(1675 x 1080 x 480) x 2 (mm)

Outdoor Net weight

181 x 2 kg

Refrigerant type

R410A

Charge amount

7.4 x 2 kg (m)

Piping Size (Liquid/Gas)

φ12.7 / 22.22 mm

Refrigerant line (one way) length

50 m

Vertical height differences (Outdoor Higher/Lower)

MAX.30 / MAX.15 (m)

Outdoor operation temperature range

10-43 °C
